AES67 Network Audio
Embedded Module
The fastest path to adding AES67, ST 2110-30, and RAVENNA connectivity to your audio products. Reliable, ultra-low latency, and fully compliant.
Why Choose Our OEM Module?
Developing network audio technology from scratch is time-consuming and costly. Our AES67 OEM module offers a plug-and-play solution that drastically reduces your time-to-market.
Designed for professional audio manufacturers, this module supports all major open standards including AES67 and SMPTE ST 2110-30, ensuring seamless interoperability with thousands of devices from hundreds of brands.
Plug & Play
Minimal integration effort required
Reliable
Proven stability in 24/7 environments
Compact
Small footprint for flexible mounting
Configurable
Comprehensive API for host control
DL Module Family

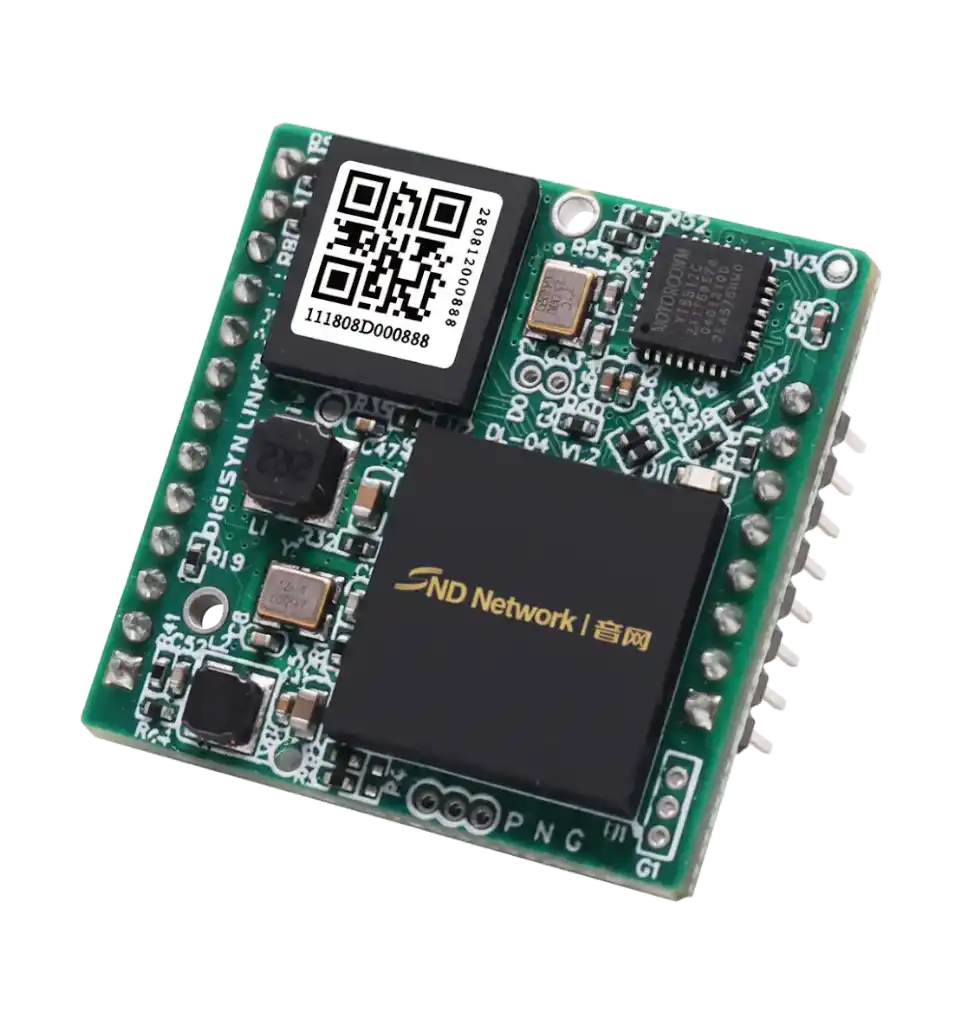

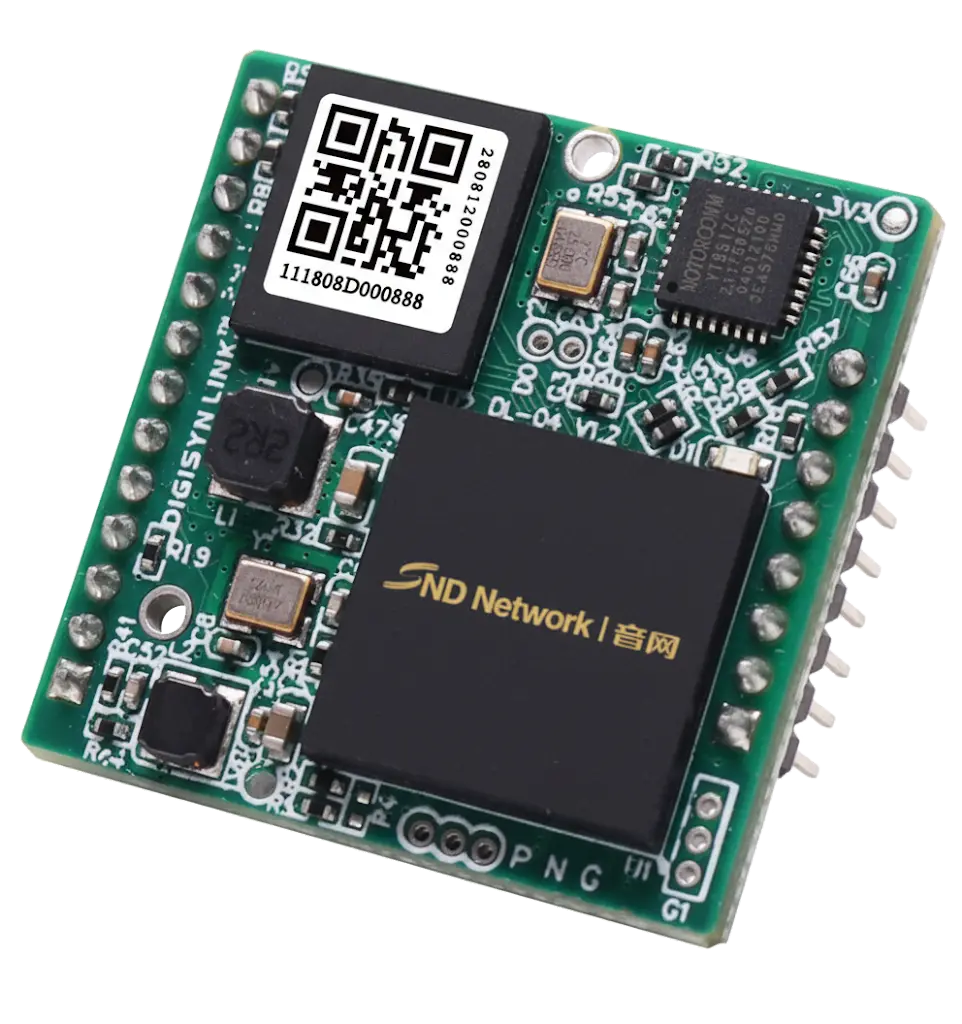

DL-04D
Compact 4 x 4 AES67+DSP Module, suitable for portable devices

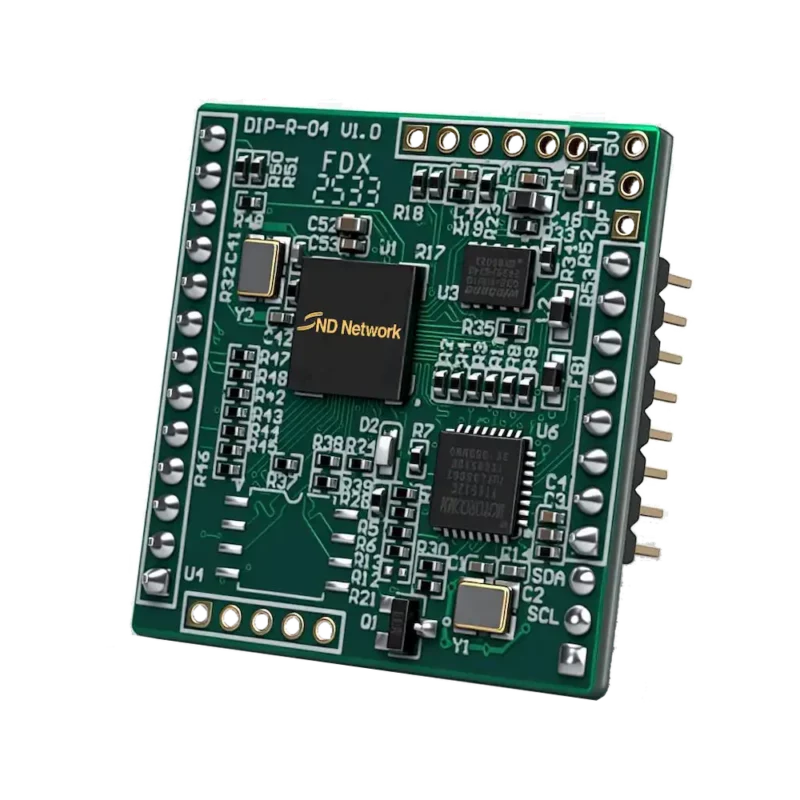

DL-04V
Economic 4 x 4 Network Audio Module, Best Value Choice

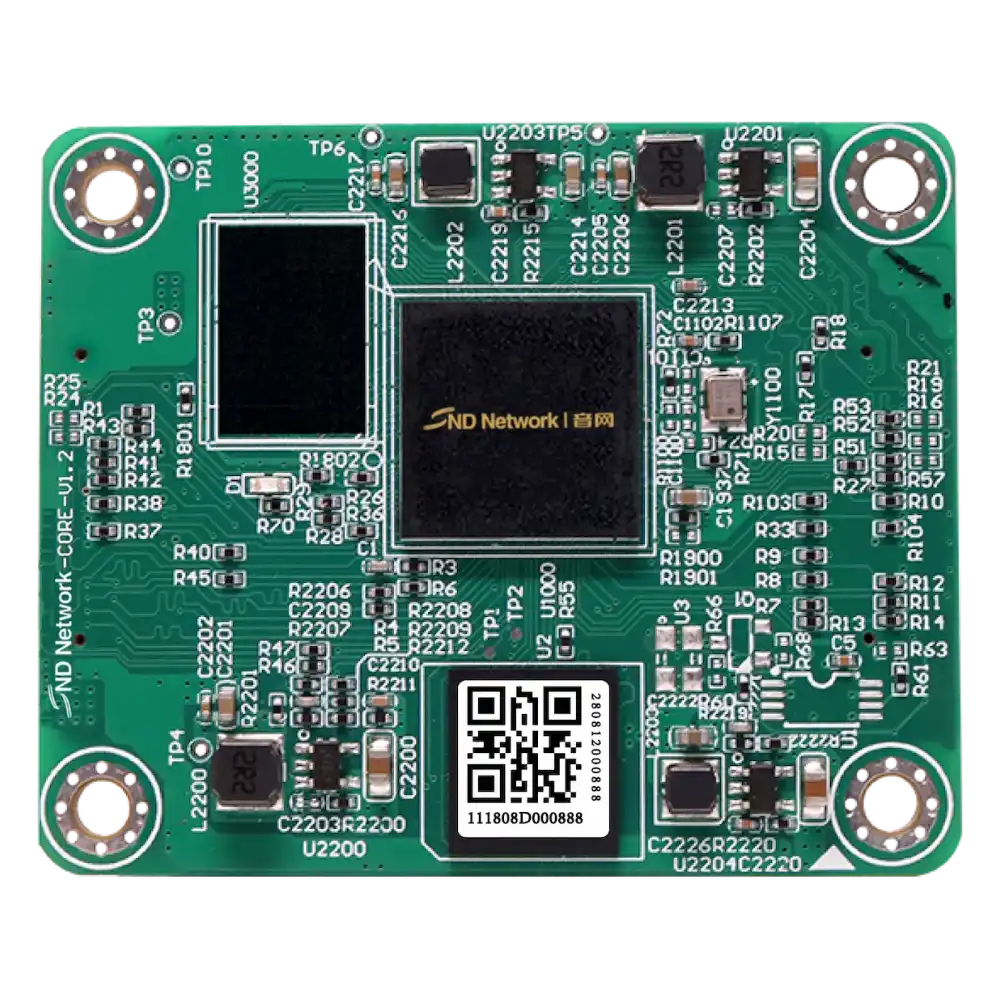

DL-08D/16D
8 x 8 / 16 x 16 AES67+DSP Module, rich DSP functions

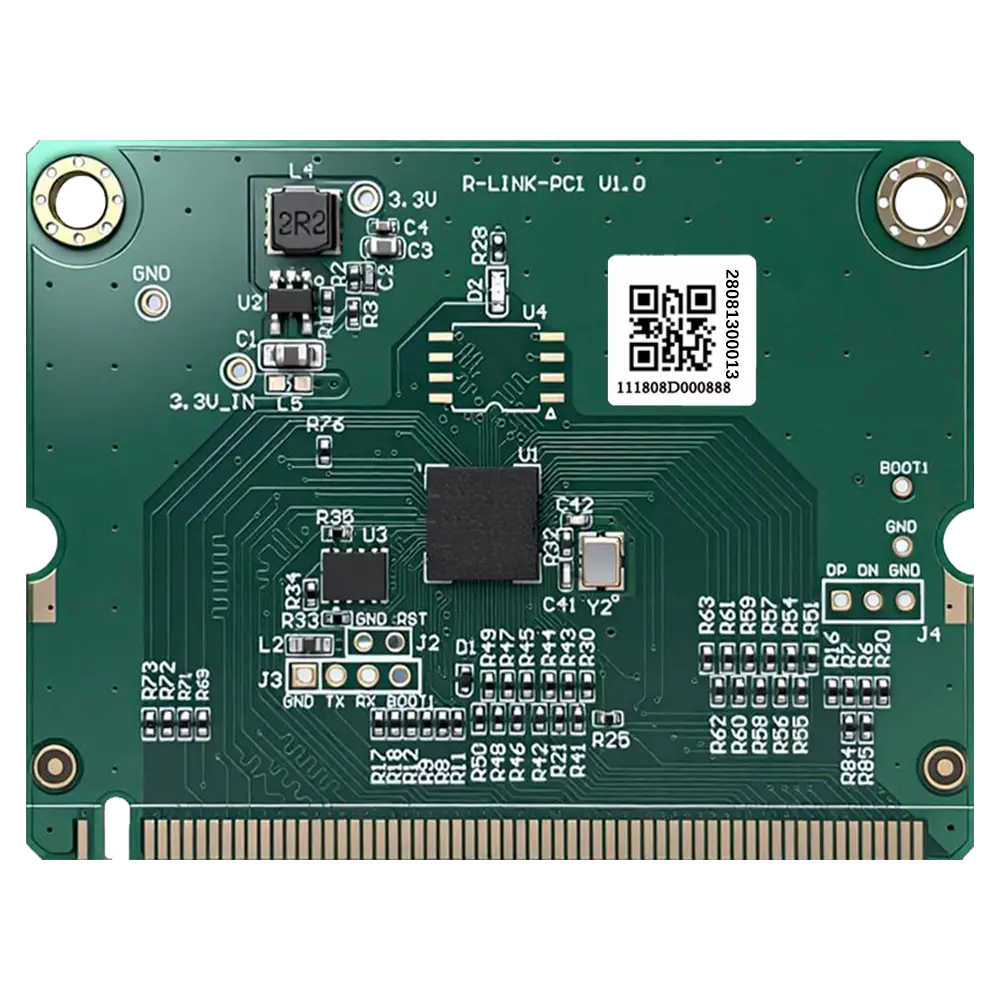

DL-08V/16V/32V
High-performance Multi-channel AES67 Module, supports 48-192 kHz

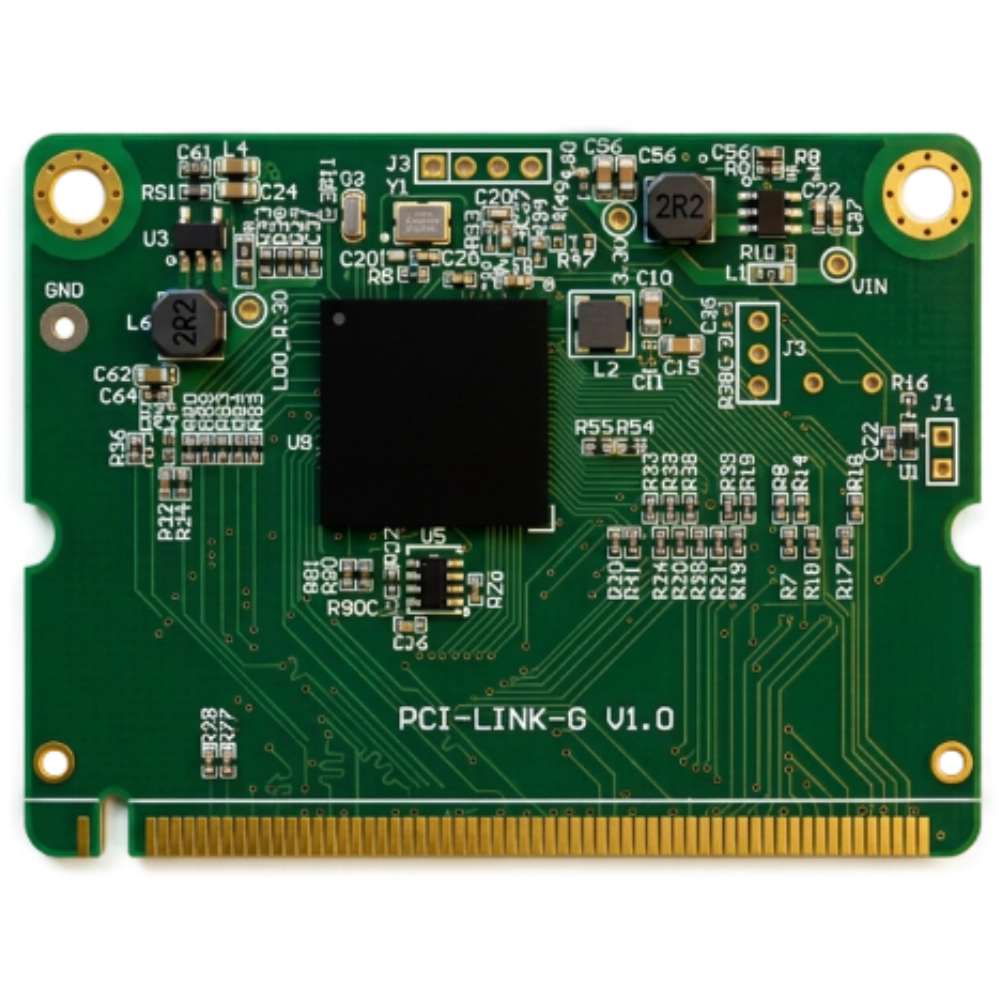

DL-MAX
Flagship Network Audio Module, Ultra-high 128-Channel Count Capability
AES67 Module Comparison
| Model | Channels (In/Out) | Sample Rate | Interface | DSP | Size |
|---|---|---|---|---|---|
| DL-04D | 4 x 4 | 48 / 96 / 192 kHz | I2S | 29 x 29 mm | |
| DL-04V | 4 x 4 | 48 / 96 / 192 kHz | I2S | 29 x 29 mm | |
| DL-08D/16D | 8 x 8 / 16 x 16 | 48 / 96 / 192 kHz | I2S/TDM | 45 x 55 mm | |
| DL-08V/16V/32V | 8 x 8 / 16 x 16 / 32 x 32 | 48 / 96 / 192 kHz | I2S/TDM | 45 x 55 mm | |
| DL-MAX | 32 x 32 / 64 x 64 / 128 x 128 | 48 / 96 / 192 kHz | I2S/TDM | 45 x 55 mm |
DSP Feature Comparison
| Feature | D Series (DSP) | V Series (RISC-V) |
|---|---|---|
| Signal Generator | ||
| Noise Gate | ||
| Feedback Suppression | ||
| Delay | ||
| Parametric EQ (PEQ) | ||
| High-pass Filter | ||
| Low-pass Filter | ||
| Expander | ||
| Compressor | ||
| Limiter | ||
| FIR Filter | ||
| Ducking | ||
| Mute | ||
| Gain | ||
| Phase Invert | ||
| Auto Mixer | ||
| Mix Matrix | ||
| Gain Sharing | ||
| Gain Control | ||
| Gain Grouping | ||
| Mute Grouping | ||
| Preset Management | ||
| Level Meter (I2S) | ||
| AGC (DL-08D only) | ||
| ANS (DL-08D only) | ||
| AEC (DL-08D only) | ||
| AFC (DL-08D only) |
