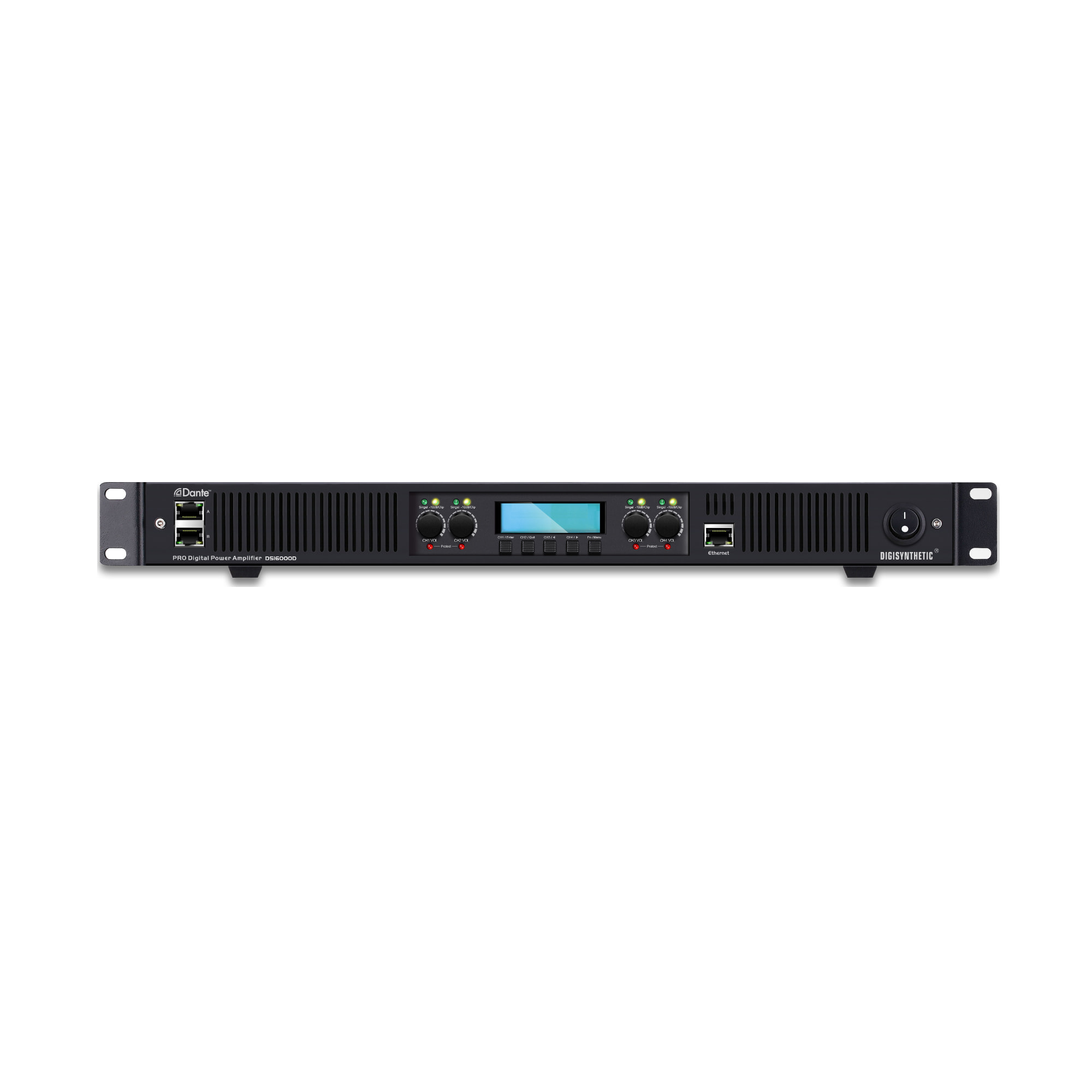

DSI3000/DSI6000 4 Channel Digital Network Power Amplifier
- The DSI3000/DSI6000 4 Channel Digital Network Power Amplifier is a high-performance amplifier equipped with a DIGISYN LINK DL-08 module. Its compact 1U rack design makes it suitable for both mobile performances and fixed installations.
- This amplifier utilizes the latest Class D Power Amplifier design technology, ensuring excellent sound quality and delivering powerful output without distortion. It incorporates various protection features including overload, short-circuit, DC, and temperature control protection, ensuring the safety of the amplifier and connected equipment.
- With its outstanding power-supply design, the amplifier achieves a power efficiency of more than 85%, resulting in minimal heat loss. This efficient operation contributes to the longevity of the amplifier and helps maintain optimal performance.
- Each channel of the amplifier is equipped with an independent Input/Output Equalizer, allowing precise adjustments to the audio signal. Additionally, the amplifier offers a maximum delay time of 1 second, enabling time alignment for better audio synchronization.
- The DSI3000/DSI6000 amplifier supports TCP/IP network monitoring and debugging, allowing easy integration and control within a network setup. It offers versatile connectivity options, including AES3 AES67 DIGISYN LINK Digital Audio and Analog Signal Input, ensuring compatibility with various audio sources.
| Model | DSI 3000 | DSI 6000 |
| Channel | 4 | 4 |
| Output Power | All channels driven output power， THD=1% | |
| 8Ω Stereo | 350W x 4 | 1300W x 4 |
| 4Ω Stereo | 500W x 4 | 2400W x 4 |
| 2Ω Stereo | 600W x 4 | 2600W x 4 |
| Input/Output EQ | Input 6 band / Output 8 band parametric equalizer | |
| Gain：-15~+15dB， step 0.1dB | ||
| Frequency：19.7Hz~20.2KHz | ||
| Bandwidth：0.011~3.595 | ||
| Type：PEQ， High Pass， Low Pass (optional) | ||
| Frequence Division | Gain：-15~+15dB， step 0.1dB | |
| Frequency：19.7Hz~20.2KHz | ||
| Slope：12/24/36/48dB； | ||
| Type：Butterworth， Bessel， Link witz-Riley | ||
| Compressor | -3dB，-6dB，-12dB | |
| Delay | 0~1S， step21us | |
| Frequency Response(@8Ω) | 20Hz~20KHz， ±0.3dB | |
| Slew Rate | 50V/us | |
| THD+N | <0.3% | |
| SNR | >105dB | |
| Crosstalk | >75dB | |
| Damping Factor | >800(8Ω，20Hz~200Hz) | |
| Input Impedance | 20KΩ(bal) ， 10KΩ(un bal) | |
| Power Efficiency | >85% | |
| Height | 1U | |
| Product Dimensions(mm) | 482 × 397 x 45mm | 482 x 446 × 45mm |
| Packing Dimensions(mm) | 530 × 545 × 90mm(WxDxH) | |
| Net Weight | 8.0Kg | 11.0Kg |
| Gross Weight | 9.7Kg | 12.7Kg |
