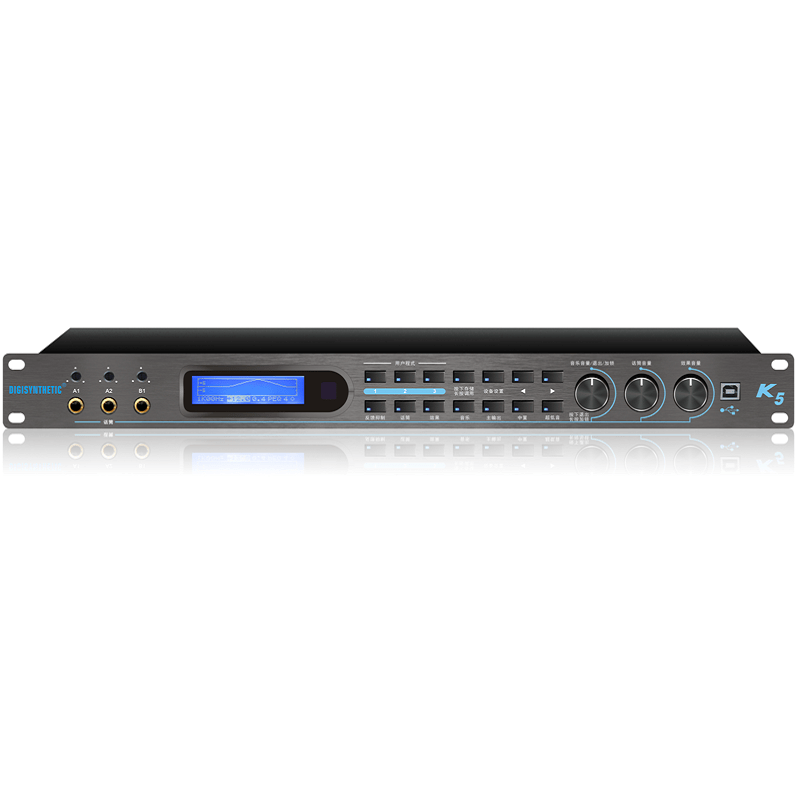

K5 4 Channel Professional Vocal Processor

Characteristics

  • High-quality AD/DA Converters and dual high-speed DSP architecture, and HIFI hardware design deliver natural and enthralling timbre.
  • The design for low noise MIC pre-amp makes the sound clearer and sweeter. · Two sets of curves are configured to adapt to a variety of microphone applications.
  • 3.1Channels, mixing ratio(Echo/Reverb/Music/Direct) of all outputs can be adjusted.
  • Parametersofall channels can be adjusted independently or linked together, such a flexible and convenient.
  • The 5th generation Reverb algorithm with professional early reflections and modulation gives more excellent sound field and warmer.
  • High-quality Echo algorithm with three modes: Mono/Dual/Stereo.
  • Professional FBE function can effectively eliminate the howling, to increase the system Gain or use in a severe environment.
  • Singing and Disco are two kinds of work modes, intelligent automatic switching.
  • Support analog or S/PDIF(coaxial or optical) music sources. USB, RS232, Infrared or wired remote interface, friendly graphical user interface.

Table of Contents

Downloads

Specifications



Music
SNR                  Bypass, Pitch-Shifter Of     ≥107dB(Analog),≥114dB(S/PDIF)
THD+N                Output   +4dBu,1kHz         ≤0.002%(Analog),≤0.001%(S/PDIF)
Frequency  Response  L/R/C                        20Hz-20kHz  ±0.5dB
S.W                          20Hz-2000Hz  ±0.5dB
Max Input Level      Analog Inputs:IN1/IN2        4Vrms
S/PDIF  Inputs:Optical/Coaxial 0dBFS  =  2Vrms
Max Output Level                                  4Vrms
Gain                 Analog Input:INI/IN2        -30dB~+18dB
S/PDIF   Inputs:Optical/Coaxial-30dB~+12dB(Trim:-12dB~0dB)
Pitch-Shifter                                         ±12 Pitches,100 Cent (HalfTone)/Step
MIC
SNR                   Bypass, Effect Off          ≥99dB
THD+N                  Output   +4dBu,1kHz          ≤0.006%
Frequency  Response   L/R/C                         20Hz-20kHz   ±0.5dB
S.W                            20Hz-2000Hz  ±0.5dB
Sensitivity   /Impedance3 Front Inputs                 31mVrms/3.3k2
2 Rear Inputs               44mVrms/10KΩ
Gain                 3 Front Inputs               30dB~42dB
2 Rear Inputs                  39dB
Video
Inputs/Outputs        3 IN,1 OUT.Follow the music input selection.
Sensitivity /Impedance 1Vpp/75Ω
Parameter Equalizer& Filter
PEQ/Lo-Shelf/Hi-Shelf Bands: Music 10,Mike 15×2,Main Output 7,Center7, Subwoofer 5,,Echo 10,Reverb 10
Frequency:19.7Hz~20.2kHz, 19.7Hz~2000Hz(S.W) Gain:-15dB~+12dB

Bandwidth(Oct):0.011~3.595

Filter HPF:19.7Hz~202Hz

19.7Hz~1kHz(S.W)

LPF:12.1kHz~20.2kHz

35.1Hz~2kHz(S.W)

Roll-off;12dB/24dB/36dB/48dB Type:Bessel/Butterworth/LinkwitzRiley
others
Remote Control       Infrared Receiver, Line remote(Type S Connector)
Online Control         RS232C(DB9  Female),USB(Type  B,Driver  Free)
Mains Input          110-240Vac50-60Hz
Power   Consumption    ≤13.5W
Fuse Size               T1AL/250VAC
Net  Weight            3kg
Dimension  (WxH×D)  482×158×45(mm)
