DMX208A 4x4 Network DSP Audio Matrix
- DMX208A is a network audio matrix or stagebox, including 4×4 channels analog (Phoenix port) interfaces and 4×4 network channels. The input interface can activate a 48V phantom power supply.
- It has an 8×8 mixing matrix, supporting Dugan and gating mixing auto mixer. Sampling rates of 48kHz and 96kHz, with bit depths of 16, 24, and 32 bits.
- Utilizes the AES67 protocol and provides powerful DSP functions with support for OTA upgrades and splicing. It can be combined with DSCORE audio workstation or DMX232 network mixer to form a large-scale mixing matrix. Supports routing, monitoring and DSP via DIGISYN LINK3 GUI controller.
- PoE-af standard power supply 15W, also supports DC power input.
- Supports AEC (Acoustic Echo Cancellation), ANS (Automatic Noise Suppression), AGC (Automatic Gain Control), AFC (Adaptive Feedback Cancellation), and ANC (Active Noise Cancellation).
Ever-Iterating AES67 Devices
The DMX208A is a powerful AES67 network audio matrix that supports communication with other AES67 devices. It enables full-system audio routing, device configuration, real-time monitoring, and DSP management through the All-in-one software. With support for DSP customization and OTA upgrades, it ensures continuous updates and functional optimization of the device.
DIGIGYSN LINK-embedded
Equipped with the DL-08 network audio module, it seamlessly supports the AES67 protocol, enabling interoperability with all AES67 network devices. It provides a 4×4 network transmission channel, offering ultra-low latency, stability, and high-quality audio networking. The DMX208L combines the stage box and DSP processor into one unit, reducing system complexity, saving on the number of devices in the network, and budget.

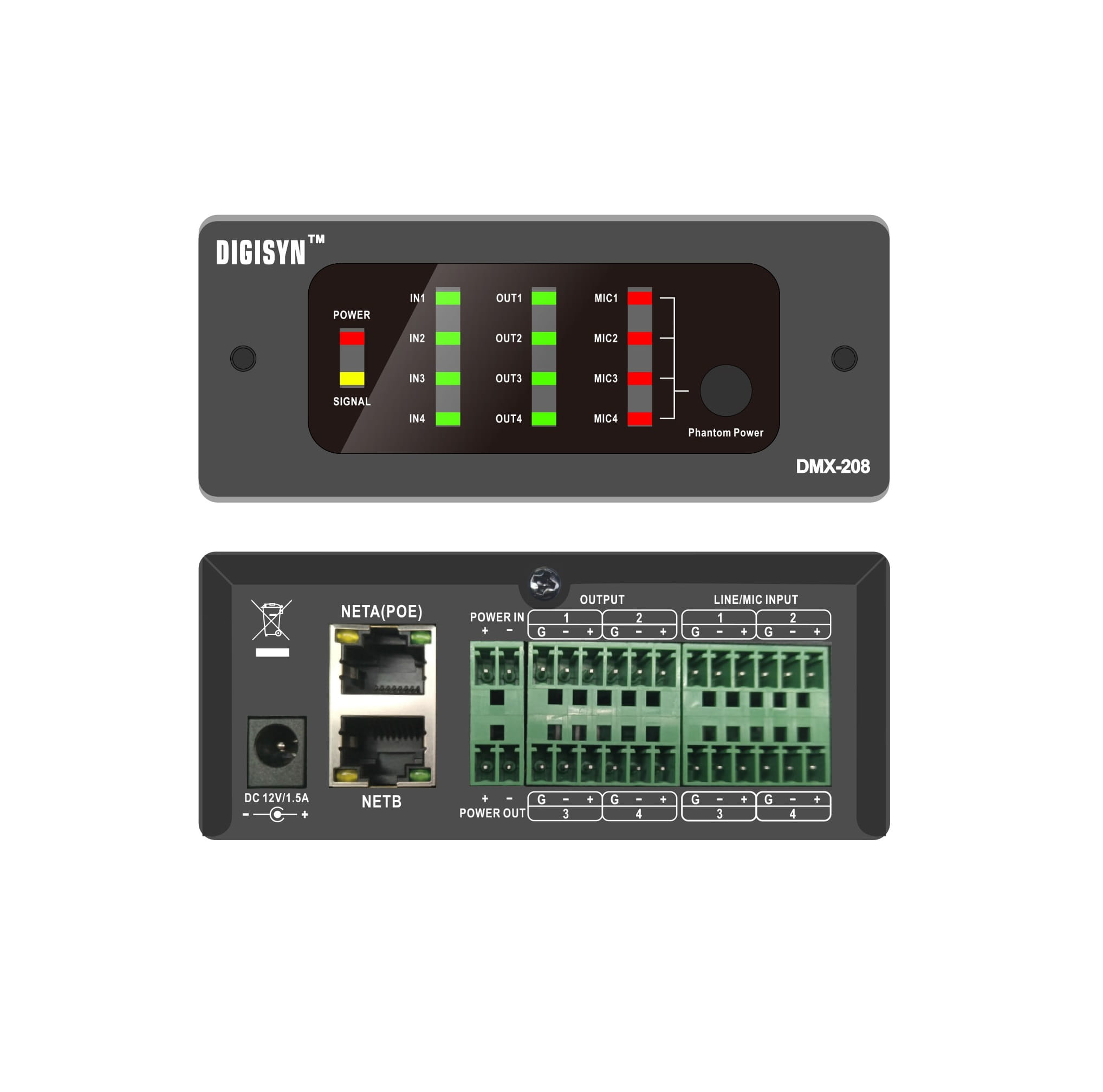

Front panel
- Channel level indicator light
- Power indicator light
- Network communication status light
- Phantom power indicator light
- Phantom switch
Back panel
- DC 12V 1.5A DC power supply
- Gigabit network interface （’A’ supports PoE Power）
- Power Input Interface
- Power Output interface
- Input audio channels （Supports 48V phantom power）
- Output audio channels
DIGISYN LINK3 GUI Controller
Utilize the DIGISYN LINK 3 free control software to achieve a combination of DSP, audio routing, and online monitoring.
PoE and DC Dual power
DMX208A supports PoE-af standard provides 15W power supply and also DC12V / 1.5A.
Customizable DSP
Expandable network mixing matrix
With Ethernet connectivity, in conjunction with DMX232 32X32 mixing matrix or DSCORE audio workstation, it can achieve a mixing matrix of over a thousand channels, meeting the needs of any large-scale audio system.
Phenix port and 48V phantom power
4×4 phenix port inputs and outputs. The inputs can provide 48V phantom power for microphones.
| Audio Capabilities | Value |
| Sampling Rates | 48 / 96 kHz |
| Network audio delay | 0.5 ~ 20 ms |
| Bit Depth | 16/ 24 / 32 Bit |
| Harmonic distortion + noise | 0.005%@re +4dBu, A weighting, 1kHz |
| Channel isolation | 84DB, A weighting, re+4dBu |
| Frequency response | +0.3DB 20Hz-20kHz |
| Maximum input/output level | 14DBU@1kHz, THD+N<1% |
| Dynamic range | 110DB, A weighting |
| Words put gain | 0 / 15 / 20 / 24DB 4 files |
| Common mode rejection ratio | >50DB @1kHz, re+4dBu |
| The input impedance | Equilibrium 18kΩ, non-equilibrium 9kΩ |
| Output impedance | Equilibrium 300Ω, non-equilibrium 150Ω |
| Hardware | |
| Analog audio channel | 4 IN, 4 OUT |
| Network audio channel | 4 IN, 4 OUT |
| Phantom power supply | 48V, 10MA, Ripple＜10MV |
| Power supply | 12V DC, 1.5A / PoE-af(15w) power supply |
| Analog Interfaces | Phoenix Interface |
| Network bandwidth | 100 Mbps |
| Size | 108 x 149 x 45 mm |
| Net weight | 0.7 kg |
| Name | Last Update |
|---|---|
| DMX208A Leaflet PDF | 2025-1-28 |
| DMX208A 手册 PDF | 2025-1-28 |
