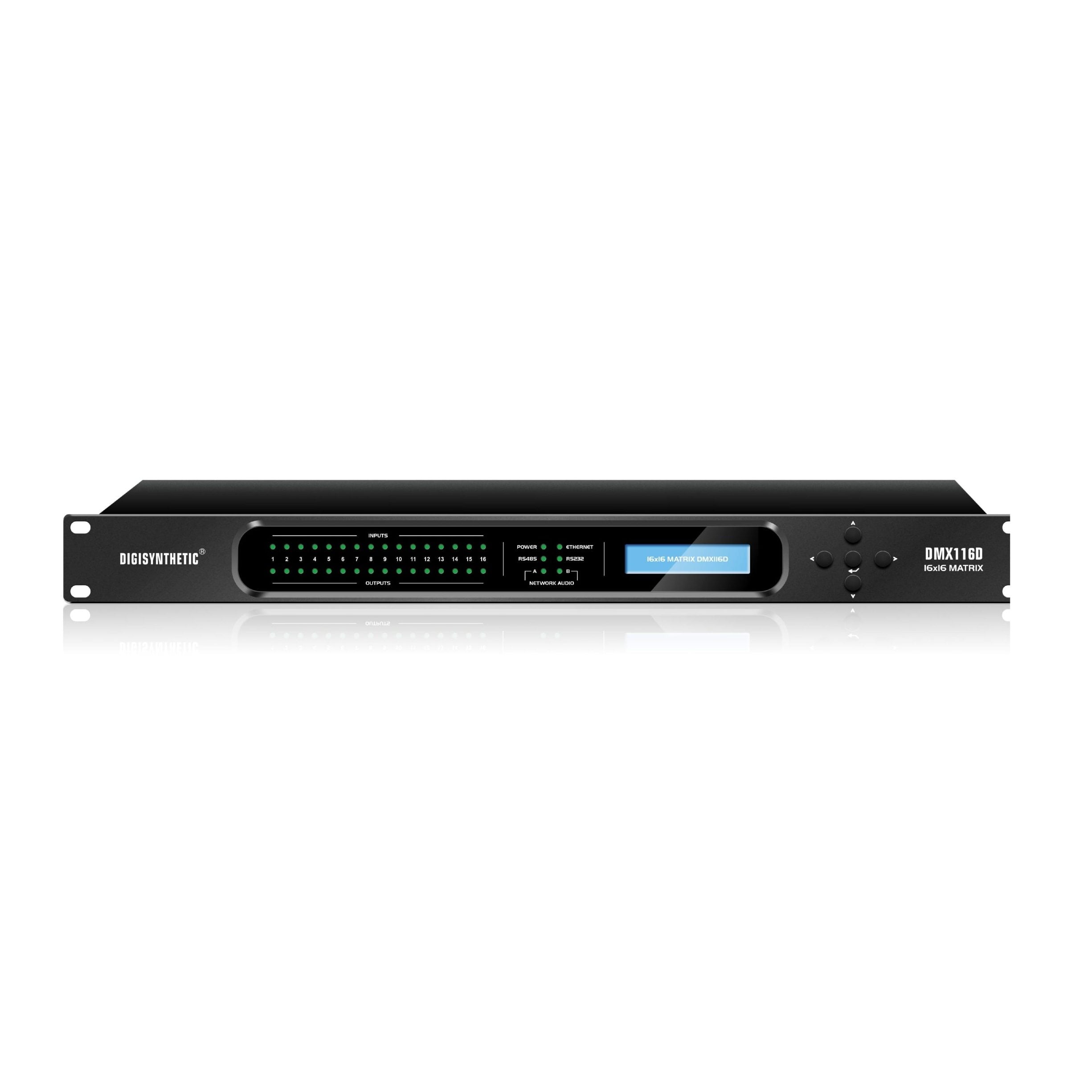

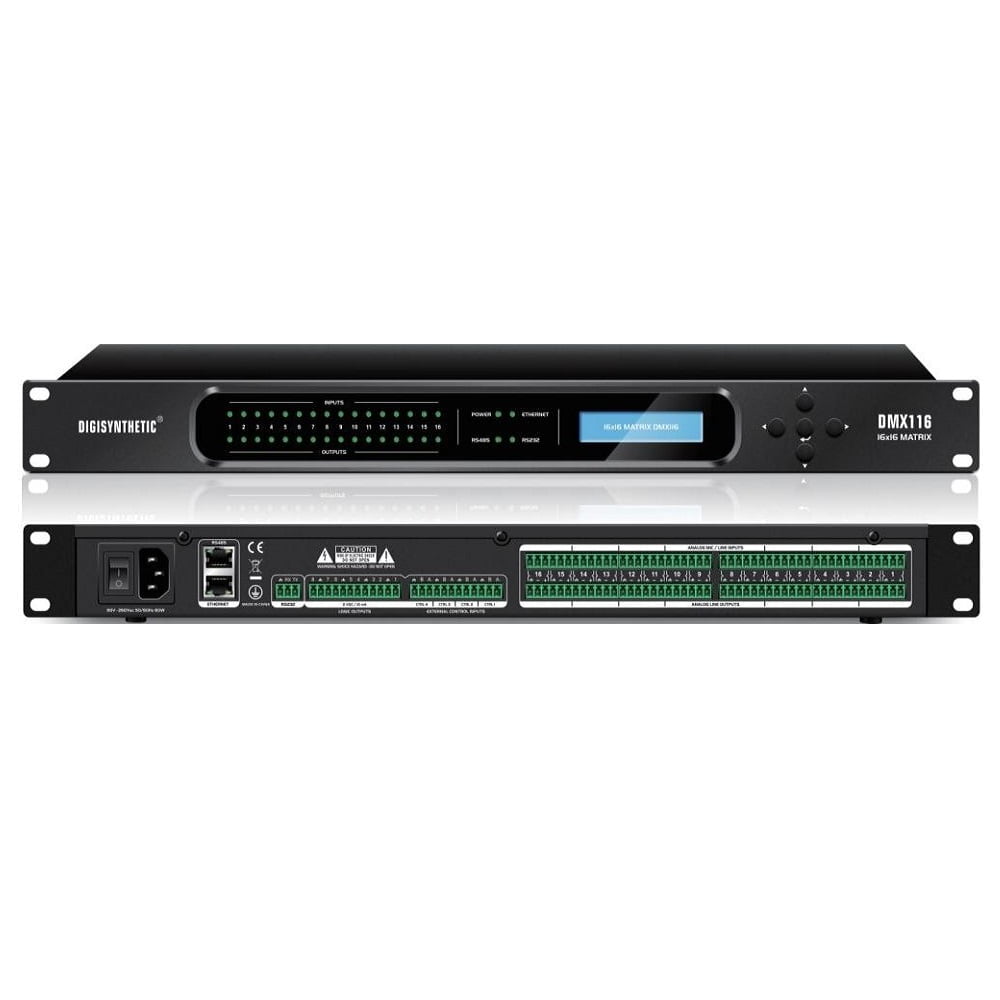

DMX116 16x16 Digital Matrix Processor

Characteristics

  • High-speed processing DSP chip, the New generation of AFC algorithm to eliminate the feedback faster and make the system more stable.
  • Microphone preamplifier, compressor extension, Auto gain control, Ducker, AutoMixer, MatrixMixer, AGC, AFC, ANS, Crossover, Equalize PEQ, Limiter, and Delay, signal generator, Provide a complete set of Audio process solutions.
  • 16-channel +48V phantom power microphone/circuit input,16- channel circuit output; 8-channel external control input, and 8-channel logic output. 8 Channel GPIO for DMX116.
  • Connection with GUI interface directly through Ethernet, Easy and Efficient to set.
  • Power off the automatically save function, Open RS232 RS485 Control Protocol, and Receive the third-party control systems.
  • Directly control the volume and call the scene through the wall panel or android phone APP.

Table of Contents

Downloads

Specifications



Input Impedance 20kΩ(bal),10k2(unbal)
Output Impedance 3000(Bal),1500(unbal)
Maximum Input 20dBU@1kHz,THD+N≤1%,22kHzBW
Maximum Output 20dBU@1kHz,THD+N≤1%,22kHzBW
SNR 95DB@re+4dBu,22kHzBW,A-Weighted,  ODB  MIC  Gain
92DB@re+4dBu,22kHzBW,A-Weighted,36DB   MIC   Gain
Dynamic Range 112DB@re Maximum Output Level, 22kHz BW, Unit Gain, A-Weighted
THD+Noise 0.002%@re+4dBu,22kHzBW,1kH,Unit     Gain
Channel Separation 91dB@20Hz-20kHz,re+4dBu
CMRR ≥85DB@1kHz,re+4dBu
Phantom Power 48V,10MA,  Ripple≤10MV
External

Input Control

DMX116:8 Channet; DMX116D: 32 Channel
Logic Output DMX116:8 Channel; DMX116D:32 Channel
FrequencyResponse ±0.03dB 20Hz-20kHz
MIC Gain(DB) 0\12\24\36\48DB
ETHERNET 100M communication speed, standard cable communication distancez100M
RS485 RX\TX\GND, communication distance≥100M
R5232 Standard 232 Levelinterface, A variety of optional Baud rate
Power 90~260VAC,50-60Hz50-60W
Size 482x231x45mm
Weight 3.5kg
